LAWN & GARDEN EQUIPMENT

AERATOR, STAND ON 30"

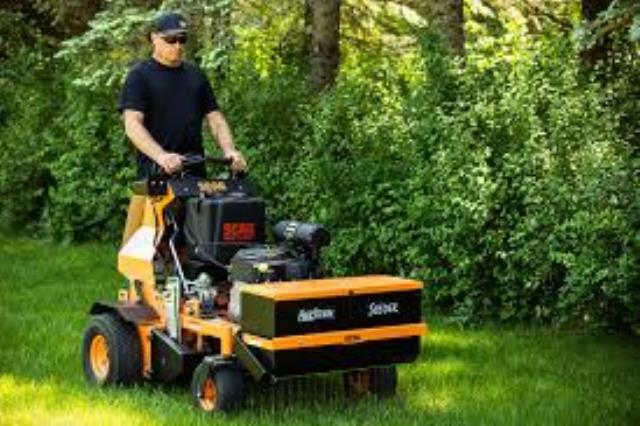

	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: SCAG

Model: AS30-23CV-DS

4 Hour: $200.00

8 Hour: $225.00

Daily: $265.00

5 Day: $795.00

Weekly: $1,060.00

Monthly: $2,650.00

Quantity: for a period of
4 hour(s) 8 hour(s) day(s) 5 day(s) week(s) month(s)

Additional Information

UNIT WEIGHS ABOUT 1100 LBS
Length: 68.6"
Width: 49.8"
Height: 51.2"
Type: Plug-style aeration. Mid/under-belly mount.
Aerating Width: 30
Aerating Depth/Adjustment: 1 to 4 in 1/2 increments. Simple and intuitive depth selection pin with easy-grip rubber knob.
Tines: 48 self-cleaning, replaceable, steel coring tines
Tine Activation & Pressure: Hydraulic tine engagement (raise and lower) via a foot-activated switch. Tine activation switch on the instrument panel prevents accidental engagement/disengagement while working or transporting. Adjustable hydraulic down-pressure helps to penetrate even the hardest and driest soils to ensure effective aeration performance in all conditions.
Engine Specification
Brand: Kohler Command Pro
Model: CV732
Horsepower: 23.5 HP @ 3600 RPM
Torque: 40.3 ft-lbs. (peak)
Type: 4 cycle gas, twin-cylinder, air-cooled, OHV, vertical shaft engine
Displacement: 747 cc (45.6 cubic inch)
Cylinders 2 cast-iron sleeves
Governor: Mechanical type governor with variable speed control set at 3600 rpm ( 100 rpm), idle set at 1800 rpm ( 150 rpm)
Air Intake Group: Large capacity 2-stage canister air filter
Exhaust Group: Single exhaust canister muffler
Fuel Pump Group: Integral fuel pump with inline fuel filter, internal fuel line vent; float feed; two barrel, adjustable idle, afterfire solenoid.
Oil Pump Group: Full pressure lube, with full-flow filter, 2 quart oil capacity
Starter/Electrical/Charging System: 12 volt maintenance-free sealed battery with alternator, solid state ignition with key start. 15 amp charging system, regulated.
Engine Deck Thickness: 1/4 steel
Fuel Tank: 5.5 gallon (20.8 liters) tank with molded-in cup holder
Drive Wheels/Tires: 18 x 6.5 8 four-ply pneumatic tubeless, radius edge
Caster Wheels: 13 x 6.5 6 Flat-Free (semi-pneumatic)
Brakes: Lever actuated linkage to brakes on both drive wheels
Operator Platform: Heavy gauge steel with extruded star pattern for no-slip footing. Dual adjustable suspension for operator comfort level preference.
Operator Comfort Pad: Large heavily-bolstered operator cushion can be easily removed without tools for access to hydraulics
Drive System Type: Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive wheel
Hydro Pumps: Two Hydro-Gear PG Series 10cc pumps with dump valves for movement without running engine; one cooling fan
Drive Wheel Motors: Two Parker TG 14.5 cu. inch cast-iron high torque wheel motors
Hydro Fluid Cooling Group: 3.0 qt. capacity cooling reservoir; uses SAE 20W50 fluid and 10 micron filter
Steering/Travel Control: Twin lever steering control with individual control to each wheel
Dump Valves: Allows for movement without engine running
Axles: 1.25 heavy-duty, straight motor shafts
Wire Harness: 14 and 16 gauge wire
Safety Group: Footplate-actuated operator presence system interlock to engine kill
Forward Speed Range: 0 up to 7.0 mph
Reverse Speed Range: 0 up to 3.0 mph
